Descriptions of Automatic Forklift SFL-CDD14

"

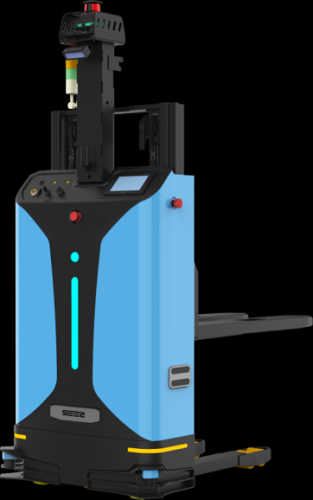

SRC-powered Laser SLAM Small Stacker Automatic Forklift SFL-CDD14, is equipped with a built-in SRC Series Controller developed by SEER. It can deploy easily without reflectors by adopting Laser SLAM navigation and slam simultaneous localization and mapping, pick up accurately by pallet identification sensor, work through narrow aisle with slim body and small gyration radius and ensure 3D safety protection by various sensors such as 3D obstacle avoidance laser and safety bumper. This self driving forklift is the preferred transfer robotic for goods moving, stacking and palletizing in the factory.

Descriptions of Automatic Forklift SFL-CDD14
Universal for narrow aisle
Slim and small gyration radius, suitable for narrow aisle applications

Real Laser SLAM
No reflector, easy to deploy with laser SLAM navigation

Comprehensive protection
Obstacle avoidance laser+Bumper+Distance sensor+3D Camera - 360° protection

High precision
Pallet recognition+Accurate handling

Good applicability
Ramp, gap, elevator, transfer, stacker

Flexible dispatching
Seamless access to dispatching system

Specifications of Automatic Forklift SFL-CDD14

Products Comparison

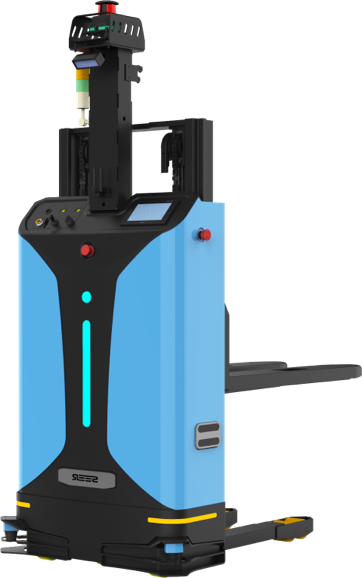

SRC-powered Laser SLAM Small Stacker Automatic Forklift SFL-CDD14
Add products
Technical parameters
Product model SFL-CDD14
Product name Laser SLAM small stacker automatic forklift
Dynamic form Electric
Driving mode Automatic navigation, handheld driving
Navigation type Laser SLAM
Tray type 3-stringer pallet
Rated load capacity 1400kg
Load centre distance 600mm
Wheelbase 877mm
Dead weight (with battery) 680kg
Navigation position accuracy [1] ±10mm
Navigation angle accuracy [1] ±0.5°
Fork in-position accuracy [1] ±10mm
Standard lifting height 1600/3000mm
Gantry height 2130mm
Fork surface ground clearance (at the lowest position) 85±5mm
Navigation laser scanning height 2025mm
Vehicle size: length * width * height 1640*990*2043mm
Fork size: length * width * height 1150*180*55mm
Fork outer width 570/680mm
Right-angle stacking channel width, pallet 1000�-1200 (1200 placed across forks) 1888mm
Right-angle stacking channel width, pallet 800�-1200 (1200 placed along the fork) 1880mm
Map area (Single) ≤ 400000m�™
Minimum turning radius 1182mm
Performance parameters
Driving speed: full load/no load 1.2/1.5m/s
Lifting speed: full load/no load 115/170mm/s
Descent speed: full load/no load 160/125mm/s
Gantry movement speed: full load/no load /
Passability (slope/step/gap)[2] < 5%/20mm/30mm
Drive motor power (S2, 60 min) 1.25kW
Lifting motor power (S3, 15%) 3kW
Steering motor power (S2, 10 min) 0.165kW
Service braking mode Electromagnetic brake
Drive control mode Servo control
Wheel parameters
Tyre type: drive wheel/support wheel Polyurethane/Polyurethane
Tire size: driving wheel 230x75mm
Tire size: bearing wheel 80x54mm
Tire size: Balance wheel 115x55mm
Wheel number: driving wheel (�-= driving wheel)/ bearing wheel 1X-2/4
Wheel base: bearing side 538mm
Wheel base: driving side 380mm
Battery parameters
Battery specifications 24/180 (Lithium Iron Phosphate)V/Ah
Battery weight 58kg
Comprehensive battery life 10h
Charging time (10%-80%) 2h
Charging method Manual/Automatic
Battery cycle number > 2000
Certifications
ISO 3691-4 �-
EMC/ESD
UN38.3
RoHS
REACH
Function configurations
Wi-Fi roaming function
3D obstacle avoidance [3]
Remote emergency stop [4]
Pallet recognition[3]
Cage stack [3]
High shelf pallet recognition[3]
Pallet damage detection [3]
Pallet stacking and unstacking [5]
The HMI screen
Fork tooth distance sensor
Cargo weight detection
Safety configurations
E-stop button
Sound and light indicator
Braking distance: 1m/s / 1.5m/s ≤30cm / ≤50cm
Vehicle hardware fault detection
360° laser protection
Bumper strip
High safety protection of fork teeth
Others
Network 4G / 5G / Wi-Fi 802.11 a/b/g/n/ac
Ground flatness ±5mm/m�™
Scenario requirements Only suitable for indoor, light intensity ≤40 klx (IEC 61496-3), ground without water and oil and other scenes
Ambient temperature and humidity range TEMP: 0-50℃ / RH: 10-90%, no compression, no condensation
IP rating IP20
Noise near driver's ear according to EN12053 ≤70dB(A)

The standard
�- There is no
optional

1. Navigation accuracy usually refers to the repeated accuracy of the robot's navigation to the target site, when the environment scanned by the robot lidar is relatively stable (rate of change &lt;
30%), the robot can navigate from a fixed direction to the target site with the desired repeatability.
When the robot runs along the virtual path, it will try to fit the path, but repeatability is not guaranteed.
In other words, the robot can guarantee the accuracy of arrival, but not the accuracy of navigation path fitting.
Fork positioning accuracy refers to the error range of a forklift truck when it is rising or descending to a specified height.
2. The road surface is smooth and clean, without obvious ups and downs.
Slope 5% = arctan(0.05) ≈ 2.8°.
The robot cannot stop or turn at the ramp, step or gap, and can only pass quickly perpendicular to the ramp, step or gap.
3. Seer identification camera and algorithm authorization are required
4. It needs to be used with SEER system.
5. Comply with SEER stacking and de-stacking technical requirements.

Seers group is a professional autonomous mobile robots manufacturers, we provide agv reach truck, amr forklift and etc. Want to know more? Contact us.
