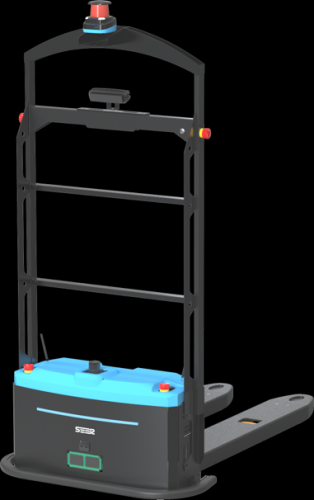

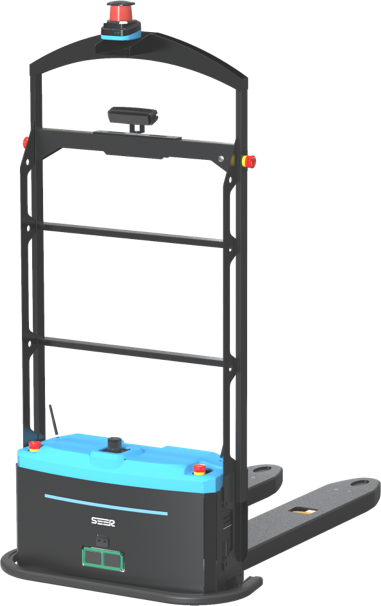

Automated Forklift SFL-MP10S

The Automated Forklift SFL-MP10S 2021 is based on the second generation of laser SLAM ground forklift automatic trucks. This automated forklift has a small shape and strong load capacity. The SRC series core controller is equipped inside to achieve ±10mm high precision positioning; And with infrared sensors, 3D obstacle avoidance, safety edge contact and other sensors for safety protection, this automated forklift can ensure the safety of people and goods in the process of operation. It can flexibly complete the transport of goods in a narrow space and realize the intelligent logistics of the factory "handling magic".

Descriptions of Automated Forklift SFL-MP10S

Customized laser height

The navigation lidar is installed on the top of the bracket. Also, the original location of the navigation lidar is replaced with an obstacle avoidance lidar.

Accurate obstacle avoidance

3D obstacle camera makes a route to achieve perfect obstacle avoidance.

More reliable anti-collision system

Increase the anti-collision bar at the bottom of the fuselage and support a variety of sensors for safety protection to ensure the safety of staff, goods and robots during operation.

Pallet recognition

Pallet recognition+Accurate handling

Automatic charging

Support automatic charging with no staff intervention.

Specifications of Automated Forklift SFL-MP10S



SRC-powered Laser SLAM Mini Automatic Forklift SFL-MP10S

Add products

Technical parameters

Product model SFL-MP10S-S

Product name Laser SLAM ground automatic forklift

Dynamic form Electric

Driving mode Automatic navigation

Navigation type Laser SLAM

Tray type 3-stringer pallet

Rated load capacity 800kg

Load centre distance 600mm

Wheelbase 842mm

Dead weight (with battery) 210kg

Navigation position accuracy [1] ±10mm

Navigation angle accuracy [1] ±0.5°

Fork in-position accuracy [1] /

Standard lifting height 70mm

Gantry height /

Fork surface ground clearance (at the lowest position) 106±5mm

Navigation laser scanning height 1865mm

Vehicle size: length * width * height 1515*885*1885mm

Fork size: length * width * height 1154*186*60mm

Fork outer width 570/680mm

Right-angle stacking channel width, pallet 1000�-1200 (1200 placed across forks) 1990mm

Right-angle stacking channel width, pallet 800�-1200 (1200 placed along the fork) 1900mm

Map area (Single) ≤ 400000m�™

Minimum turning radius 1035mm

Performance parameters

Driving speed: full load/no load 0.6/0.8m/s

Lifting speed: full load/no load /

Descent speed: full load/no load /

Gantry movement speed: full load/no load /

Passability (slope/step/gap)[2] < 5%/20mm/30mm

Drive motor power (S2, 60 min) 0.6kW

Lifting motor power (S3, 15%) 0.8kW

Steering motor power (S2, 10 min) /

Service braking mode Electromagnetic brake

Drive control mode Servo control

Wheel parameters

Tyre type: drive wheel/support wheel Polyurethane/Polyurethane

Tire size: driving wheel 100mm

Tire size: bearing wheel 80mm

Tire size: Balance wheel /

Wheel number: driving wheel (�-= driving wheel)/ bearing wheel /

Wheel base: bearing side /mm

Wheel base: driving side 400mm

Battery parameters

Battery specifications 48/35 (Ternary lithium)V/Ah

Battery weight 15kg

Comprehensive battery life 8h

Charging time (10%-80%) 2h

Charging method Manual/Automatic

Battery cycle number > 500

Certifications

ISO 3691-4 �-

EMC/ESD √

UN38.3 √

RoHS √

REACH √

Function configurations

Wi-Fi roaming function √

3D obstacle avoidance [3] 〇

Remote emergency stop [4] 〇

Pallet recognition[3] 〇

Cage stack [3] 〇

High shelf pallet recognition[3] 〇

Pallet damage detection [3] 〇

Pallet stacking and unstacking [5] 〇

The HMI screen 〇

Fork tooth distance sensor √

Cargo weight detection 〇

Safety configurations

E-stop button √

Sound and light indicator √

Braking distance: 1m/s / 1.5m/s ≤30cm / ≤50cm

Vehicle hardware fault detection √

360° laser protection √

Bumper strip √

High safety protection of fork teeth √

Others

Network 4G / 5G / Wi-Fi 802.11 a/b/g/n/ac

Ground flatness ±5mm/m�™

Scenario requirements Only suitable for indoor, light intensity ≤40 klx (IEC 61496-3), ground without water and oil and other scenes

Ambient temperature and humidity range TEMP: 0-50℃ / RH: 10-90%, no compression, no condensation

IP rating IP20

Noise near driver's ear according to EN12053 ≤70dB(A)

√ The standard

�- There is no

⚪ optional



1. Navigation accuracy usually refers to the repeated accuracy of the robot's navigation to the target site, when the environment scanned by the robot lidar is relatively stable (rate of change <

30%), the robot can navigate from a fixed direction to the target site with the desired repeatability.

When the robot runs along the virtual path, it will try to fit the path, but repeatability is not guaranteed.

In other words, the robot can guarantee the accuracy of arrival, but not the accuracy of navigation path fitting.

Fork positioning accuracy refers to the error range of a forklift truck when it is rising or descending to a specified height.

2. The road surface is smooth and clean, without obvious ups and downs.

Slope 5% = arctan(0.05) ≈ 2.8°.

The robot cannot stop or turn at the ramp, step or gap, and can only pass quickly perpendicular to the ramp, step or gap.

3. Seer identification camera and algorithm authorization are required

4. It needs to be used with SEER system.

5. Comply with SEER stacking and de-stacking technical requirements.
