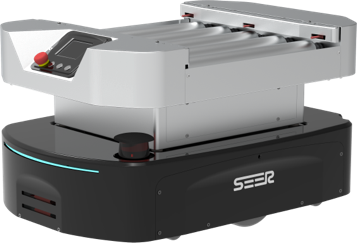

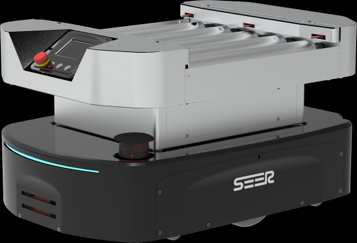

AMB-powered Roller AMR Robot

AMB-powered robot roller, as the production docking robot, is built by mounting roller module on AMB series unmanned chassis. Complete the construction of the environment map and high-precision localization through the laser SLAM algorithm and automated guided vehicle system. The repeated localization accuracy of the laser reflectorless has reached within ±5mm, the docking accuracy of which is ±2mm. AMB-powered Roller AMR Robots can realize seamless connection between workshop and warehouse, production line and another, production equipment and another according to system dispatching orders. As one of the professional automated guided vehicle manufacturers, SEER Group produces and manufactures amr autonomous mobile robots and agv for warehouse of high quality.

Descriptions of AMB-powered Roller AMR Robot

Reliable Extensibility

Compared with the carrier platform, the production line docking robot reserves not only rich interfaces on the hardware, but also enough space on the machinery to facilitate the docking of various conveying equipment.

Cluster Dispatching

Cooperating with SEER Enterprise Enhanced Digitalization (SEED) and one-stop implementation tool Roboshop Pro, it can realize the flexible dispatching of hundreds of robots.

SLAM Laser Navigation

Compared with the traditional laser navigation solution with reflector, the production line docking robot uses contours for navigation, greatly reducing the on-site implementation costs.

MES/WMS Interface

For users' convenient operation in software-level docking, the dispatching system of the robot provides an MES/WMS docking interface and users can command robots with one touch.

Specifications of AMB-powered Roller AMR Robot



AMB-powered Roller AMR Robot

Add products

Basic parameters

Product name Large roller robot

L*W*H 1000*1170*160mm

Suitable material size 900*(650±5)mm

Load capacity 300kg*1

Transfer method Single layer single roller

Machine docking height 680±2mm

Lifting height /

Lifting time /

Transfer speed 3.1-22.4 (Manually adjustable)

Shell color RAL7035

Material in place detection Three groups of optoelectronics for each roller

Chassis Based on AMB-300 series

As one of the most professional amr robot companies, we provide agv reach truck, amr warehouse, warehouse amr and etc. Want to know more? Contact us.
