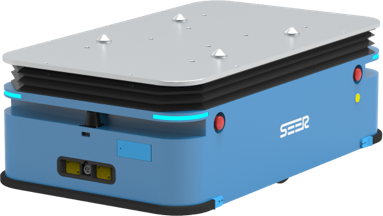

Mobile Control Robot SJV-W1000

SRC-powered Mobile Control Robot SJV-W1000, equipped with SRC series core controller, has an ultra-low chassis, so that it can drill into the shelf for jacking and transfer with a limit load of 1000kg. Repeated localization accuracy reaches within ±5 mm, ±0.5°. Built-in industrial-grade WiFi client device makes network data interaction more stable and also supports WiFi roaming. Trackless laser SLAM navigation and multi-sensors such as 3D obstacle avoidance cameras ensure safety protection. The SRC-powered autonomous industrial robots can realize the flexible transportation of goods between designated sites, such as e-commerce sorting, material transfer and other links, liberating the labour and realizing unmanned transportation. As one of the professional autonomous mobile robots manufacturers, SEER could provide you various types of automated guided vehicles and autonomous mobile robots of high qualiy.

Descriptions of Mobile Control Robot SJV-W1000

Large load

1000kg large load, to meet most industrial handling scenarios

Stable Navigation

Built-in industrial-grade WiFi client equipment makes network data interaction more stable.

Shelf Identification

The location and posture of the pallet are accurately and autonomously identified through the pallet identification sensor. Efficient and precise forking of cargoes can be realized even if the pallet is moved.

Autonomous Charging

Automatic charging is supported, requiring no staff intervention during the charging operation.

Specifications of Mobile Control Robot SJV-W1000



Mobile Control Robot SJV-W1000

Add products

Basic parameters

Navigation method Laser SLAM

Drive mode Two-wheel differential

Shell color Blue / Customized color

L*W*H 1224*730*420mm

Rotation diameter 1350mm

Weight (with battery) 250kg

Load capacity 1000kg

Chassis ground clearance 25mm

Jacking platform dimensions 1200*700mm

Maximum jacking height 60±2mm

jacking time 8±0.5s

Laser scanning height 267mm

Network Ethernet / Wi-Fi 802.11 a/b/g/n/ac

Ambient temperature and humidity range TEMP: 0-50℃ / RH: 10-90%, no compression, no condensation

IP rating[1] IP20

Passability (slope/step/gap)[2] ≤5%/5mm/30mm

Performance parameters

Minimum passable width 850mm

Navigation position accuracy[3] ±5mm

Navigation angle accuracy[3] ±0.5°

Navigation speed ≤ 1.6m/s

Map area (single frame) ≤ 400000m�™

Battery specifications 48/42 (Lithium Iron Phosphate)V/Ah

Battery parameters

Comprehensive battery life 8h

Charging time (10-80%) ≤1.5h

Charging method Manual/Automatic

Battery cycle number > 2000

Lidar number 2（SICK nanoScan3 / P+F R2000-HD + OLEI LR-1BS2）

Configurations

Number of low-position obstacle avoidance photoelectric �-

Cargo detection �-

E-stop button √

Speaker √

Atmosphere light √

Bumper strip √

Features

Basic functions[4] √

Wi-Fi roaming √

Automatic charging[5] √

Shelf recognition √

Spin[6] �-

Precise location with QR code[7] 〇

QR code navigation[8] 〇

Laser reflector navigation 〇

Certifications

EMC/ESD √

UN38.3 √

RoHS √

REACH √

Figures: √ Supported X Not supported 〇 Optional

The road surface should be smooth, clean and free of obvious ups and downs. Slope 5% = arctan (0.05) ≈ 2.8°. The robot must not stop or turn at the ramps, steps, or gaps, but can pass quickly perpendicular to them.

The localization accuracy is affected by environment, ground, etc. Please refer to the localization accuracy interpretation in the final technical agreement.

Basic functions include but are not limited to map editing, model editing, localization module, navigation module and API interface.

Need to be used with a dedicated automatic charging pile.

SJV-W1000 is designed for indoor transportation only and is not recommended for outdoor use.
