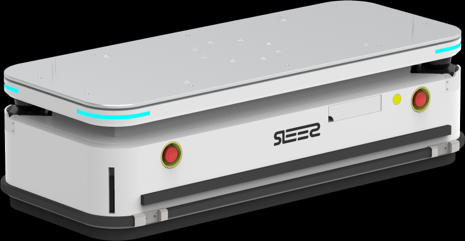

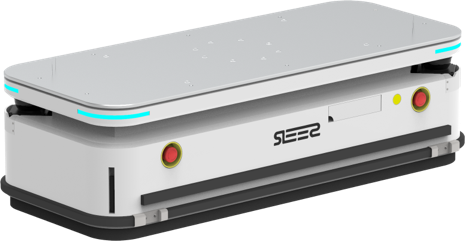

AGV Robotics SJV-W600DS-DL

Laser Slam Omni-directional AGV Robotics SJV-W600DS-DL, equipped with SRC series core controller, has an ultra-low chassis, so that it can drill into the shelf for jacking and transfer with a limit load of 600kg. This laser-guided AGV has various navigation methods and flexible deployment. Its slim body enables to move in all directions easily

Descriptions of AGV Robotics SJV-W600DS-DL

Various Navigation

Freely switch between laser SLAM and QR code navigation and easy deployment

Omni-directional Motion

Omni-directional motion model allows unrestricted movement.

Slim

Suitable for narrow channel applications with its 546mm dimension.

Efficient and Safe

Both lidar and safety bumper for 360° protection.

System Access

Seamless access to dispatching and warehousing systems to further manage and optimize business.

Specifications of AGV Robotics SJV-W600DS-DL



Laser Slam Omni-directional Latent Jacking Transfer Robot

Add products

Basic parameters

Product model SJV-W600DS-DL

Navigation method Laser SLAM

Drive mode Dual steering wheel omnidirectional

Shell color RAL9003 / Customized color

L*W*H 1276*546*365mm

Rotation diameter 1330mm

Weight (with battery) 320kg

Load capacity 600kg

Chassis ground clearance 25mm

Jacking platform dimensions 1250*510mm

Maximum jacking height 60±2mm

jacking time 6±0.5s

Laser scanning height 273mm

Network Ethernet / Wi-Fi 802.11 a/b/g/n/ac

Ambient temperature and humidity range TEMP: 0-50℃ / RH: 10-90%, no compression, no condensation

IP rating[1] IP20

Performance parameters

Passability (slope/step/gap)[2] ≤ 5%/5mm/30mm

Minimum passable width 660mm

Navigation position accuracy[3] ±5mm

Navigation angle accuracy[3] ±0.5°

Navigation speed ≤ 1.2m/s

Map area (single frame) ≤ 400000m�™

Battery parameters

Battery specifications 48/40 (Lithium Iron Phosphate)

Comprehensive battery life 8h

Charging time (10-80%) ≤1.5h

Charging method Manual/Automatic/Switch

Battery cycle number > 2000

Configurations

Lidar number 2（SICK nanoScan3）

Cargo detection �-

E-stop button √

Speaker √

Atmosphere light √

Bumper strip √

Features

Basic functions[4] √

Wi-Fi roaming √

Automatic charging[5] √

Shelf recognition √

Spin[6] �-

Precise location with QR code[7] 〇

QR code navigation[8] 〇

Laser reflector navigation 〇

Certifications

EMC/ESD √

UN38.3 √

RoHS √

REACH √

The road surface should be smooth, clean and free of obvious ups and downs. Slope 5% = arctan (0.05) ≈ 2.8°. The robot must not stop or turn at the ramps, steps, or gaps, but can pass quickly perpendicular to them.

The localization accuracy is affected by environment, ground, etc. Please refer to the localization accuracy interpretation in the final technical agreement.

Basic functions include but are not limited to map editing, model editing, localization module, navigation

module and API interface.

Need to be used with a dedicated automatic charging pile.

Need to be used with a dedicated QR code reader.

SJV-W600DS-DL is designed for indoor transportation only and is not recommended for outdoor use.
